Application and Description
This cable is not suitable for laying in conduits, under and on lime, enclosed in installation pipes, and is not allowed
to be installed in cable trays, channels or cable boxes. It is mainly used for internal connections of equipment,
distribution boards and switches, and for lighting systems with rated voltages up to 1000 V AC or 750 V DC
under protection.
Standards and certifications
Cable construction
- Stranded flexible bare copper conductor
- Complies with VDE-0295 Cl 5, IEC 60228 Cl-5
- PVC (polyvinyl chloride) TI1 insulation
- Color coding of cores complies with VDE-0293
Technical characteristics
- Working voltage: 450/750V
- Test voltage: 2500 V
- Dynamic bending radius: 12.5 x Ø
- Static bending radius: 12.5 x Ø
- Working temperature during application: -5º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩ x km
Cable parameters：
|
Number of cores x conductor cross-sectional area # x mm² |
Nominal insulation thickness mm |
Nominal outer diameter mm |
Nominal copper weight kg/km |
Nominal cable weight kg/km |
|
1 x 1.5 |
0,7 |
3.1 |
14.4 |
20 |
|
1 x 2.5 |
0,8 |
3.6 |
24.0 |
31 |
|
1 x 4 |
0,8 |
4.3 |
38.0 |
48 |
|
1 x 6 |
0,8 |
4.9 |
58.0 |
69 |
|
1 x 10 |
1,0 |
6.4 |
96.0 |
121 |
|
1 x 16 |
1,0 |
8.1 |
154.0 |
211 |
|
1 x 25 |
1,2 |
9.8 |
240 |
303 |
|
1 x 35 |
1,2 |
11.1 |
336 |
417 |
|
1 x 50 |
1,4 |
13.1 |
480 |
539 |
|
1 x 70 |
1,4 |
15.5 |
672 |
730 |
|
1 x 95 |
1,6 |
17.2 |
912 |
900 |
|
1 x 120 |
1,6 |
19.7 |
1152 |
1135 |
|
1 x 150 |
1,8 |
21.3 |
1440 |
1410 |
|
1 x 185 |
2,0 |
23.4 |
1776 |
1845 |
|
1 x 240 |
2,2 |
27.1 |
2304 |
2270 |
Product Advantages
Structural and design robustness of the cable system

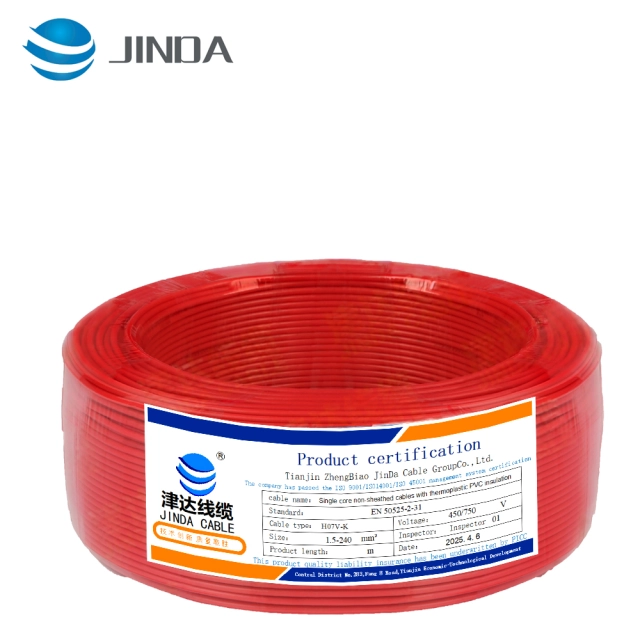

The Jinda H07V-K cable employs a system design leveraging stranded flexible bare copper conductors encased in flame-retardant PVC insulation, ensuring durability and adaptability in complex electrical environments. The color-coded core configuration adheres to VDE-0293 guidelines, significantly simplifying installation and maintenance procedures. As a leading product from a respected H07V-K cable manufacturer and flexible wire supplier, it supports scalable conductor cross-sections, facilitating modular wiring designs tailored to technical and regulatory demands within industrial and commercial settings.
Superior performance and ease of system integration
This panel wiring cable demonstrates excellent flame retardance without compromising flexibility, streamlining deployment in confined panel spaces. The flexible PVC insulated wire composition contributes to improved handling and bending, reducing installation labor and long-term mechanical stress. Its high insulation resistance and broad temperature tolerance ensure reliability across variable operating conditions. By integrating an H07V-K cable from a qualified flexible wire supplier, users benefit from enhanced system longevity and compliance, supporting engineering goals around safety, performance, and operational efficiency.
Use Scenarios
Fire-resistant internal wiring in industrial control panels
Within industrial automation facilities, the Jinda H07V-K cable fulfills a critical role in internal connections for control panels and switches. It offers the fire resistance necessary under IEC 60332.1 to minimize fire propagation risks, essential in environments handling high-current equipment. Its flexible PVC insulated wire design allows installers to route cables efficiently within compact panel layouts. The cable’s certification status reassures compliance teams about meeting stringent industry standards, enabling seamless integration into automated electrical systems monitored for safety and operational resilience.
Safe internal wiring for distribution boards in energy sectors
The cable is widely used in electrical distribution boards inside power substations and renewable energy plants, environments requiring strict adherence to fire safety and reliability standards. The H07V-K cable manufacturer’s precision-engineered product provides rated voltage support up to 1000 V AC, suitable for internal wiring without conduit use. The flexible PVC insulated wire allows straightforward termination and connectivity with circuit breakers and distribution terminals. Its adaptability enhances electrical system configurations, enabling streamlined maintenance workflows and sustained operational uptime in high-demand power distribution applications.
What makes the Jinda H07V-K cable suitable for panel wiring applications?
Our Jinda H07V-K cable features stranded flexible bare copper conductors with PVC TI1 insulation and color-coded cores, designed for easy installation in distribution boards and switch panels. This makes it a reliable panel wiring cable option compliant with key standards for durable and safe internal connections.
Can you customize the conductor cross-sectional area for the H07V-K cable?
Yes, we offer a wide range of core sizes for the Jinda H07V-K cable, from 1.5 mm² up to 240 mm², allowing you to select scalable conductor cross-sectional areas tailored to your electrical requirements. As a trusted H07V-K cable manufacturer, we support flexible solutions for various industrial needs.
Is the Jinda H07V-K cable designed for flexible wire applications?
Our product includes stranded flexible bare copper conductors, and the PVC TI1 insulation adds durability and flexibility, making the Jinda H07V-K an excellent flexible wire supplier solution for installations requiring fire resistance and mechanical robustness.
What precautions should I take when installing the Jinda H07V-K cable?
We advise that the Jinda H07V-K cable not be installed inside conduits, cable trays, or installation pipes. It is specifically designed for protected internal wiring of equipment and must be applied in compliance with its rated voltage and environmental requirements to ensure optimal fire safety and performance.
