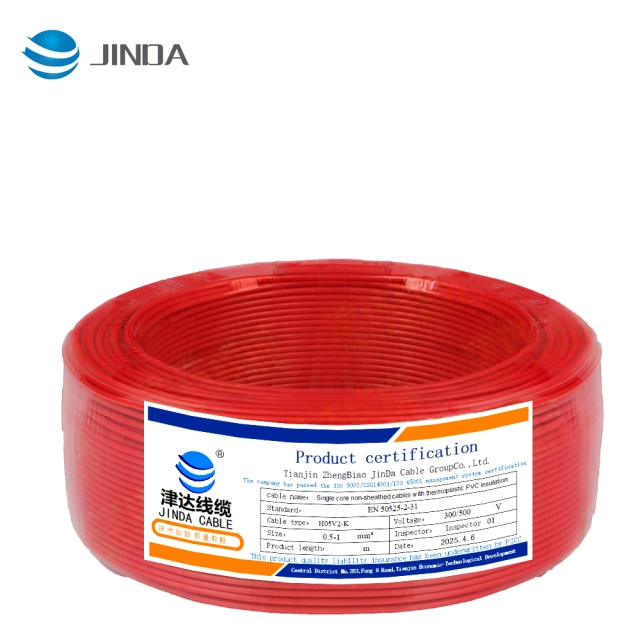

Name: H05V2-K Power Cable For Wire Manufacturers
Brand: JINDA | Cable
Availability: InStock
Rating: 5 (1 reviews)

Description

Application and Description

This special heat-resistant soft single-core electronic wire is mainly used in power installations, switch cabinets,
motors and transformers in high temperature (such as glazing machines and drying towers, etc.) environments.
These are also suitable for internal wiring of electrical equipment such as lighting and heating equipment.

Standards and Approvals

HD 21.7 S2, CEI 20-20, CEI20-52, VDE-0281 Part 7,

Cable Construction

- Stranded flexible bare copper conductor

- Complies with VDE-0295 Cl 5, IEC 60228 Cl-5, BS 6360 cl. 5 and HD 383

- Heat resistant PVC TI3 insulation, complies with VDE 0281 Part 7

- Core color coding complies with VDE-0293

- H05V2-K (20, 18 & 17 gauge)

Technical Features

- Working voltage: 300/500v (H05V2-K)/ 450/750v (H07V2-K)

- Test voltage: 2000 V

- Dynamic bending radius: 10-15 x Ø

- Static bending radius: 10-15 x Ø

- Operating temperature in application: +5º C to +90º C

- Flame retardant: IEC 60332.1

- Insulation resistance: 20 MΩ x km

Cable parameters：

Number of cores x conductor cross-sectional area # x mm²	Nominal insulation thickness mm	Nominal outer diameter mm	Nominal copper weight kg/km	Nominal cable weight kg/km
H05V2-K
1 x 0.5	0.6	2.5	4.8	8.7
1 x 0.75	0.6	2.7	7.2	11.9
1 x 1	0.6	2.8	9.6	14.0

Purpose-Built For High‑Temperature Wiring In Electrical Units
The H05V2-K single-core cable by JINDA CABLE is designed to meet the thermal demands of industrial electrical environments. Developed for electrical engineers, maintenance technicians, and cabinet integrators, this wire is ideal for internal connections in equipment such as heating devices, drying towers, and lighting panels. As a trusted option from global wire manufacturers, the H05V2-K provides a compact, durable solution for maintaining conductivity under elevated operating conditions. It supports users who require consistent wiring performance across applications where flexibility, insulation, and space efficiency are critical to system design and longevity.

Technical Construction With PVC TI3 And Fine-Stranded Copper
Built with a flexible bare copper conductor and high-temperature-resistant PVC TI3 insulation, H05V2-K adheres to multiple international standards including VDE 0295 Cl 5, IEC 60228 Cl 5, and BS 6360 Cl 5. This cable operates at 300/500 V, withstands up to +90 °C continuous temperatures, and passes a test voltage of 2000 V. With an insulation resistance exceeding 20 MΩ·km and IEC 60332.1-rated flame retardancy, it fits precision needs in confined spaces. Manufactured through rigorous cable manufacturing processes, this wire achieves an optimal balance between durability and flexibility for demanding electrical installations.

Trusted In Thermal Equipment And Compact Control Assemblies
H05V2-K supports reliable power and signal transmission in industrial-grade machinery. From switchboards and motor circuits to lighting and heating equipment, its performance under thermal and mechanical stress makes it a favored choice for long-term use. With excellent bend radius and low maintenance overhead, this wire allows integration into modular control enclosures and production machinery. Recognized by professionals in power systems, automation, and industrial design, it reflects JINDA’s strength as one of the specialized industrial cable suppliers serving complex operational sectors.

Product Advantages

Heat‑Resistant PVC Insulation Built For Industrial Standards
The cable’s high-temperature PVC TI3 insulation is engineered to resist continuous exposure to environments up to +90 °C. This insulation layer ensures dimensional stability, resistance to cracking, and dependable performance over time. Its flame-retardant rating under IEC 60332.1 further protects enclosed systems from short circuits and thermal propagation risks. By integrating these features into a compact design, JINDA delivers a power cable that reinforces equipment safety and system compliance across industrial electrical layouts.

Flexible Copper Strands Simplify Installation In Tight Spaces
The use of Class 5 fine-stranded bare copper allows excellent maneuverability during deployment. Whether pulled through conduit, fitted into dense control boxes, or looped in tight radii, H05V2-K accommodates demanding layout requirements without compromising on current carrying capacity. This structural flexibility minimizes installation time and reduces the risk of conductor fatigue or stress breaks—qualities that highlight JINDA’s meticulous cable manufacturing control and on-site practicality for installers and OEM engineers alike.

Standard Compliance Supports Global Integration
H05V2-K aligns with European and international cable standards, eliminating regulatory barriers for integration into new and replacement projects. Its VDE, IEC, and BS compliance ensure compatibility with widely used connection protocols, switchgear units, and modular terminal systems. Engineers and consultants benefit from its plug-and-use readiness, making it an efficient solution for global deployment. These conformity features confirm JINDA’s role among premium wire and cable manufacturers with a focus on technically sound, globally trusted electrical solutions.

Use Scenarios

Factory Engineer Wiring Internal Circuits In Heating Equipment
In high-heat equipment such as enamel furnaces and drying ovens, electrical engineers must select wiring that withstands ambient and localized thermal loads. H05V2-K’s +90 °C rating and flame resistance provide confidence during integration of power supplies, control relays, and lighting modules. As a power cable engineered for tough internal environments, it supports consistent load transfer and minimizes degradation, enabling long-term productivity and reduced maintenance within thermally intensive factory units.

Maintenance Crew Retrofitting Switch Cabinets In Drying Towers
When servicing switchgear in vertical drying systems, field technicians face spatial limitations and elevated temperatures. The H05V2-K offers the flexibility and insulation stability needed for complex retrofits. Its stranded copper structure enables sharp directional routing without damage, while its certified flame protection adds a safety layer during operation. Technicians from OEMs and utility plants value this cable as a proven component from industrial cable suppliers, enabling safe upgrades and minimizing downtime across control architectures.

Electrical Consultant Specifying Wiring For High‑Heat Control Panels
During the design of compact power or control panels in heating or lighting systems, consultants must choose a cable that fits both form factor and function. H05V2-K, with its small diameter, flexible build, and standard ratings, integrates effortlessly into modular panel designs. For system architects working with motor controls, power distribution, or sensor-actuated logic systems, this cable meets technical and environmental needs while aligning with specs typically used by global wire manufacturers.

About Us

Founded in 1987, JINDA CABLE has grown from its origins as Tianjin Tongjin Cable Co., Ltd. into a full-spectrum wire and cable group serving global industrial markets. With over 30 years of manufacturing experience, the company operates across a 470,000 m² production base in northern China, maintaining facilities in Tianjin, Liaoning, Shandong, Heilongjiang, and Shaanxi. Its product line includes XLPE insulated cables, low-voltage and control cables, flame-retardant and fire-resistant wires, special-purpose electrical cables, and PVC-insulated wires. These products serve power generation, transmission, petrochemical, mining, railway, and infrastructure sectors. JINDA has supplied cables to projects like the Beijing Olympic venues and Shanghai Expo, and exports extensively to Europe, the Americas, Southeast Asia, and Africa. Its customer base spans utility operators, contractors, equipment OEMs, and system integrators. With ISO-certified processes and a technical service guarantee of up to 10 years, JINDA positions itself as a dependable partner in the wire and cable industry, prioritizing quality, integrity, and long-term client trust.

Request a technical quote for H05V2-K from JINDA CABLE now!

FAQ

What installation conditions is H05V2-K suitable for?
It is ideal for dry indoor environments where temperatures may reach up to +90 °C, especially in equipment interiors.

Does H05V2-K comply with international wire standards?
Yes, it complies with VDE 0295 Cl 5, IEC 60228 Cl 5, BS 6360 Cl 5, and flame retardancy standard IEC 60332.1.

What kind of copper conductor is used?
It features fine-stranded bare copper with Class 5 flexibility, making it suitable for tight routing applications.

Is technical support available during deployment?
JINDA CABLE offers full technical consultation, including product matching and installation guidance.

What is the typical lead time for ordering H05V2-K?
Delivery times vary by quantity and location. Stock models are readily available across JINDA’s manufacturing base.
