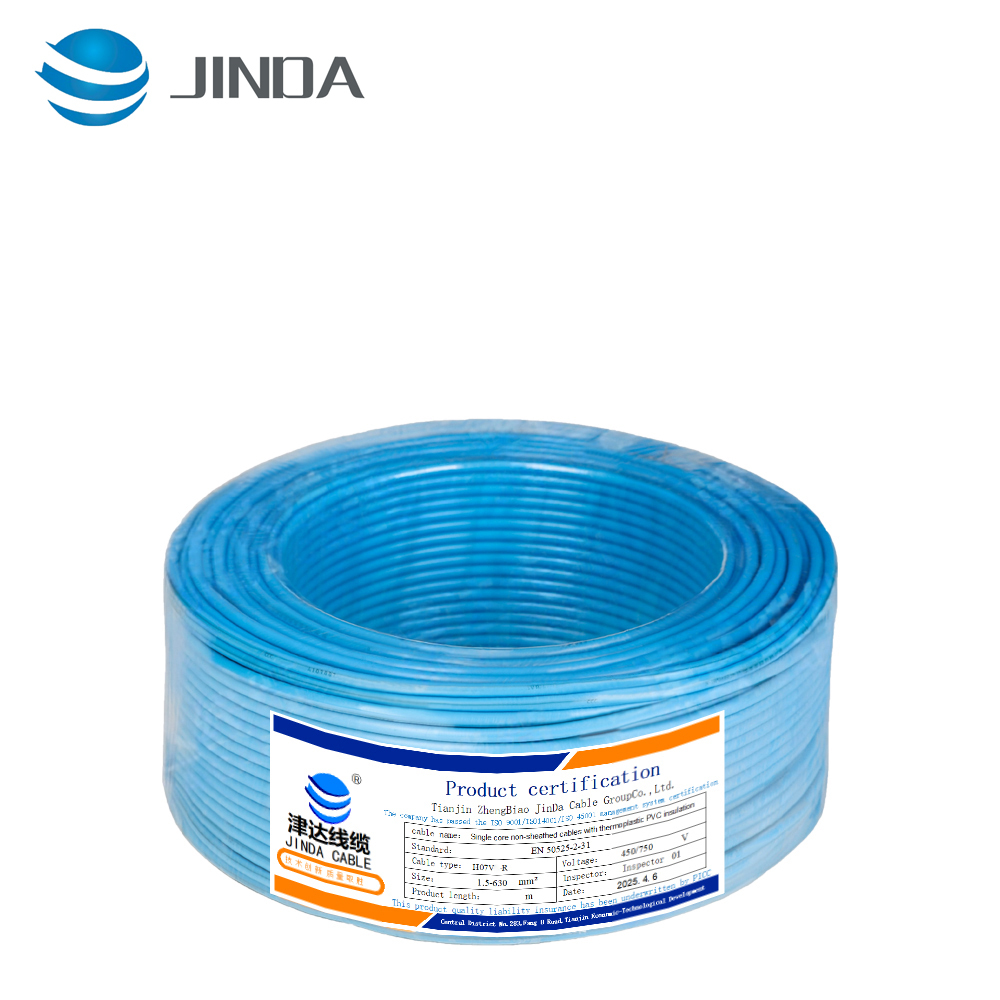

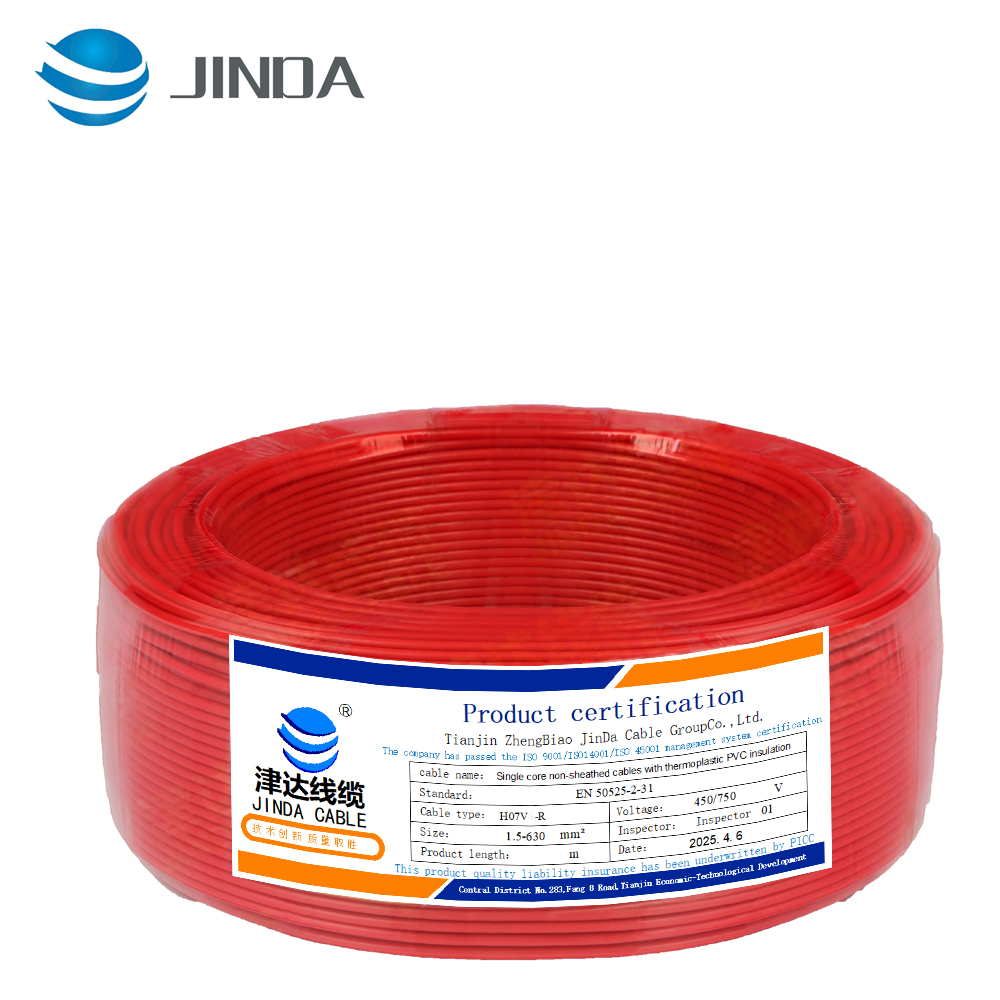

Name: Jinda H07V-R Fire Resistant Cable - Flexible Power Cable
Brand: JINDA | Cable
Availability: InStock
Rating: 5 (1 reviews)

Description

Application and Description:

This cable is mainly used for indoor, cable duct and industrial plant or conversion station, underground installation.
It can be used in switchboards and distribution boards or equipment requiring more wire strands. It is used for export
to European countries in electronic machinery and switchgear, and can be used as an alternative to European-made equipment wire MRO.

Standards and certifications

HD 21.3 S3, BS 6004, VDE-0281 Part 3, CEI 20-20/3, CEI 20-35 (EN60332-1) CEI 20-52, CE Low Voltage Directives 73/23/EEC and 93/68/EEC, ROHS certification

Cable construction

- Solid/stranded bare copper conductor

- Comply with VDE-0295 Cl-2, IEC 60228 Cl-2

- PVC (polyvinyl chloride) TI1 insulation

- Color coding of cores complies with VDE-0293

Technical characteristics

- Working voltage: 300/500 V(H05V-R), 450/750 V(H07V-R)

- Test voltage: 2000 V(H05V-R), 2500 V(H07V-R)

- Dynamic bending radius: 15 x Ø

- Static bending radius: 15 x Ø

- Operating temperature in application: -5º C to +70º C

- Flame retardant: IEC 60332.1

- Insulation resistance: 10 MΩ x km

Cable parameters：

Number of cores x conductor cross-sectional area # x mm²	Nominal insulation thickness mm	Nominal outer diameter mm		Nominal copper weight kg/km	Nominal cable weight kg/km
H07V-R
1 x 1.5	0.7	3.0	14.4		23
1 x 2.5	0.8	3.6	24		35
1 x 4	0.8	4.2	39		51
1 x 6	0.8	4.7		58	71
1 x 10	1.0	6.1		96	120
1 x 16	1.0	7.2		154	170
1 x 25	1.2	8.4		240	260
1 x 35	1.2	9.5		336	350
1 x 50	1.4	11.3		480	480
1 x 70	1,4	12.6		672	680
1 x 95	1,6	14.7		912	930
1 x 120	1,6	16.2		1152	1160
1 x 150	1,8	18.1		1440	1430
1 x 185	2,0	20.2		1776	1780
1 x 240	2,2	22.9		2304	2360
1 x 300	2.4	24.5			2940
1 x 400	2.6	27.5			3740

Unmatched Flexibility and Safety
The Jinda H07V-R fire resistant cable is engineered for superior performance in indoor installations, making it an ideal choice for industrial applications. Its stranded copper conductor enhances flexibility, allowing for easy routing through narrow or curved spaces without compromising conductivity. This fire resistant cable is perfect for use in switchboards, distribution boards, and equipment requiring more wire strands. With flame-retardant PVC insulation, it meets stringent international standards, ensuring safety and durability. As one of the leading fire resistant cable manufacturers, Jinda Cable guarantees compliance with certifications such as CE, VDE, and ROHS, making it a reliable choice for your wiring needs.

Built for Precision and Performance
Designed to withstand demanding environments, the H07V-R fire resistant cable supports voltage ratings up to 450/750V and operates efficiently within temperatures ranging from -5ºC to +70ºC. This ensures long-lasting stability and performance in controlled settings. The cable's construction includes a solid or stranded bare copper conductor, complying with VDE-0295 Cl-2 and IEC 60228 Cl-2 standards, which enhances its reliability. As a trusted name among fire resistant cable manufacturers, Jinda Cable provides a product that not only meets but exceeds expectations in terms of operational reliability and quality. The cable fire resistant properties are certified under IEC 60332.1, ensuring it can withstand high temperatures and resist flame propagation.

Scalable Design to Meet Growing Demand
Available in a broad range of specifications from 1.5mm² to 400mm², the H07V-R fire resistant cable caters to diverse wiring needs across various industrial scenarios. Its scalable design supports dynamic applications, making it adaptable for future expansions or modifications. This flexibility is crucial for industries looking to maintain operational efficiency while scaling up their infrastructure. As a leading fire resistant cable manufacturer, Jinda Cable ensures that each product is crafted with precision and attention to detail, providing a solution that is both future-proof and reliable. The cable fire resistant nature of the H07V-R makes it a preferred choice for industries prioritizing safety and compliance with international standards.

In summary, the Jinda H07V-R fire resistant cable offers unmatched flexibility, safety, and scalability, making it an indispensable component for industrial installations. Trust Jinda Cable Group, a renowned name among fire resistant cable manufacturers, to deliver high-quality, compliant, and durable solutions for your wiring needs.

Product Advantages

1. Enhanced Flexibility for Complex Installations
The Jinda H07V-R fire resistant cable features a stranded copper conductor, providing superior flexibility for easy routing through narrow or curved spaces. This adaptability makes it ideal for switchboards and distribution boards, ensuring seamless integration in complex industrial setups. As one of the leading fire resistant cable manufacturers, Jinda Cable delivers products that meet diverse wiring needs.

2. Uncompromised Safety and Compliance
With flame-retardant PVC insulation, the H07V-R fire resistant cable adheres to stringent international standards, including CE, VDE, and ROHS certifications. This ensures maximum safety and durability, making it a reliable choice for critical installations. Trust Jinda Cable Group, a top name among fire resistant cable manufacturers, for compliant and secure wiring solutions.

3. Robust Performance in Demanding Environments
Designed to withstand voltage ratings up to 450/750V and temperatures from -5ºC to +70ºC, the H07V-R fire resistant cable ensures long-lasting stability. Its construction complies with VDE-0295 Cl-2 and IEC 60228 Cl-2 standards, enhancing reliability. As a trusted provider of fire resistant cables, Jinda Cable guarantees operational excellence.

4. Scalable Solutions for Future Growth
Available in specifications from 1.5mm² to 400mm², the H07V-R fire resistant cable supports dynamic applications, making it adaptable for future expansions. This scalability is crucial for industries aiming to maintain efficiency while scaling infrastructure. Jinda Cable Group, a leader in fire resistant cable manufacturers, offers future-proof solutions.

5. Global Trust and Proven Quality
Jinda Cable's H07V-R fire resistant cable is a preferred choice for industries worldwide, exported extensively to European markets. Its compliance with international standards and robust performance make it a trusted solution. As a renowned name among fire resistant cable manufacturers, Jinda Cable provides high-quality, durable products for global needs.

About Us - Jinda Cable

Jinda Cable is a leading global manufacturer and supplier of high-quality power cables, providing reliable solutions across multiple industries such as energy, transportation, and engineering.

Core Manufacturing Capabilities and Quality Assurance

Comprehensive Production: Jinda Cable specializes in the production of various cables, including cross-linked polyethylene insulated power cables, low-voltage power cables, control cables, fire-resistant cables, and special cables.
Stringent Quality Control: Our products are subjected to rigorous testing throughout the manufacturing process to meet international standards. We maintain a robust quality assurance system to guarantee the reliability and performance of all our cables.
Certifications and Standards: Jinda Cable is certified with industry-standard quality certifications, ensuring compliance with global safety and performance regulations.

Production Strength

With over 30 years of experience, Jinda Cable boasts an annual sales volume exceeding 10 billion yuan. We have served over 50 countries and regions, including major markets in the Americas, Europe, and Asia. Our manufacturing facilities are equipped with cutting-edge technology, allowing us to produce millions of meters of cables annually.

Sustainability Measures

We are committed to sustainability, using eco-friendly materials and optimizing energy efficiency in our production processes. Jinda Cable adheres to environmentally responsible practices and complies with international environmental regulations, ensuring that we contribute to the global effort in reducing environmental impact.

Customer Cooperation Process

Our process begins with understanding client needs, followed by tailored solutions, product development, and timely delivery. After-sales support is available to ensure long-term performance and satisfaction.

Global Service Capability

With a strong presence in over 50 countries, Jinda Cable offers comprehensive global service, ensuring that clients across various industries receive high-quality products and prompt customer service regardless of location.

Contact Jinda Cable today to discover how we can support your business with top-tier power cables and unparalleled customer service. Let's build a reliable, long-lasting partnership together!

FAQ

Who are we?
We are Jinda Cable, a leading global power cable manufacturer with over 30 years of experience in the cable industry. We specialize in producing a wide range of power cables, including low-voltage, high-voltage, fire-resistant, and flexible cables.

How can we guarantee quality?
At Jinda Cable, quality is our top priority. We adhere to strict international quality standards and conduct thorough testing throughout our production process. Our cables are certified by renowned quality organizations to ensure reliability and performance in demanding applications.

What can you buy from us?
We offer a wide variety of power cables, including low-voltage power cables, medium-voltage cables, control cables, fire-resistant cables, flexible power cables, and special cables designed for industrial, transportation, and engineering applications.

Why should you buy from us instead of other suppliers?
Jinda Cable stands out for its long history of high-quality manufacturing, stringent quality control measures, and strong customer relationships. With over 30 years in the industry, we guarantee reliable products, excellent customer service, and competitive pricing, making us a trusted choice in the cable industry.

What services can we provide?
We provide end-to-end services including customized cable solutions, fast delivery, and comprehensive after-sales support. Our expert team is dedicated to ensuring that your needs are met with the highest standards of service and product quality.

Looking for a dependable power cable supplier? Contact JINDA CABLE today to source high-performance H07V-R flexible power cables designed for industrial precision and long-term reliability.
