Name: N2XCY Power Cable For Industrial Cable Suppliers
Brand: JINDA | Cable
Availability: InStock
Rating: 5 (1 reviews)

Description

Application and description

N2XCY is commonly used for indoor installation, installation under outdoor cable ducts and power stations,
industrial plants and switches, and local supply systems. For indoor installation of instrument panel and
switchboard wiring, not for outdoor or humid environments.

Standards and certification

IEC 60502 -1, VDE 0276-603

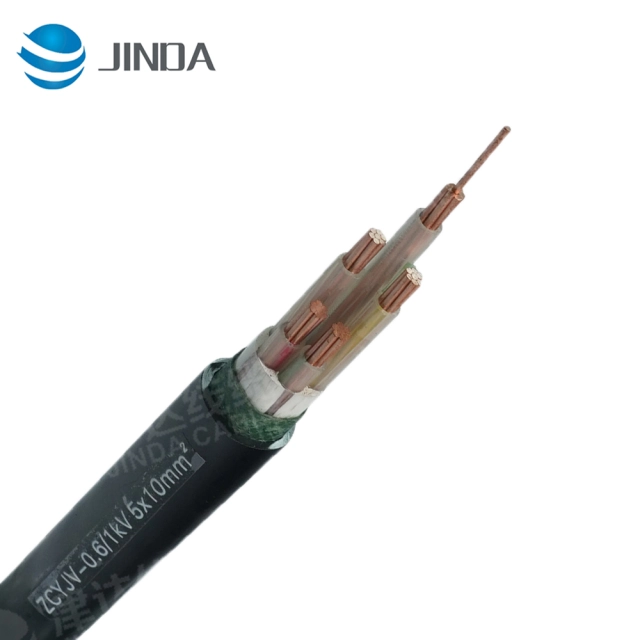

Cable structure

- Solid or multiple strands of bare copper conductor

- Follow DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2 and IEC 60228 cl.1/cl.2

- XLPE insulation DIX3 class, following VDE 0276-603/5G

- Color coding according to DIN VDE 0293(HD 308)

- PVC filling

- Concentric conductor: copper wire and copper strip

- PVC outer jacket DMV5 follows HD 603.1

Technical characteristics

- Operating voltage: 600/1000 V

- Test voltage: 4000 V

- Minimum bending radius: 15 x Ø

- Operating temperature: -5º C ~ +70º C

- Fixed installation temperature: -30 º C to +70º C

- Flame retardant: IEC 60332.1

- Insulation resistance: >20 MΩ x km

Cable parameter

Core number x conductor Cross area # x mm²	Conductor type	Insulation thickness Mm	Sheath thickness Mm	Communication conductor Cross area mm²	Nominal outside diameter Mm	Cable weight kg/km
1x1.5	re/rm	0.7	1.8	1.5	9.7	114
1x2.5	re/rm	0.7	1.8	2.5	10.2	135
1x4	re/rm	0.7	1.8	4	10.8	170
1x6	re/rm	0.7	1.8	6	11.3	214
1x10	re/rm	0.7	1.8	10	12.4	304
1x16	re/rm	0.7	1.8	16	13.8	431
1x25	rm	0.9	1.8	16	15.5	548
1x35	rm	0.9	1.8	16	16.6	650
1x50	rm	1	1.8	25	18.8	892
1x70	rm	1.1	1.8	35	21.0	1207
1x95	rm	1.1	1.8	50	23.5	1600
1x120	rm	1.2	1.8	70	26.0	2045
1x150	rm	1.4	1.8	70	28.0	2320
1x185	rm	1.6	1.8	95	30.5	2942
1x240	rm	1.7	1.9	120	34.0	3761
1x300	rm	1.8	2.1	150	37.0	4591
1x400	rm	2	2	185	41.5	5830
1x500	rm	2.2	2.3	240	46.0	7450
1x630	rm	2.4	2.5	300	52.0	9561
1x800	rm	0.7	1.8	400	58.0	12290
2x1.5	re/rm	0.7	1.8	1.5	13.0	198
2x2.5	re/rm	0.7	1.8	2.5	13.9	239
2x4	re/rm	0.7	1.8	4	15.0	304
2x6	re/rm	0.7	1.8	6	16.2	384
2x10	rm	0.7	1.8	10	18.1	546
2x16	rm	0.7	1.8	16	21.0	766
2x25	rm	0.9	1.8	16	24.0	1030
2x35	rm	0.9	1.8	16	26.0	1283
2x50	rm	1	1.9	25	29.5	1631
2x70	rm	1.1	2	35	33.0	2247
2x95	rm	1.1	2..2	50	37.5	3028
2x120	rm	1.2	2.3	70	42.0	3817
2x150	rm	1.4	2.5	70	46.0	4526
2x185	rm	1.6	2.6	95	51.0	5694
2x240	rm	1.7	2.8	120	57.0	7302
2x300	rm	1.8	3.1	150	63.0	9049
3x1.5	re/rm	0.7	1.8	1.5	13.5	218
3x2.5	re/rm	0.7	1.8	2.5	14.5	270
3x4	re/rm	0.7	1.8	4	15.7	348
3x6	re/rm	0.7	1.8	6	16.9	446
3x10	rm	0.7	1.8	10	19.0	645
3x16	rm	0.7	1.8	16	22.0	916
3x25	rm	0.9	1.8	16	25.0	1260
3x35	rm	0.9	1.8	16	27.5	1597
3x50	sm	1	1.9	25	30.0	1919
3x70	sm	1.1	1.9	35	34.0	2697
3x95	sm	1.1	2	50	37.5	3608
3x120	sm	1.2	2.2	70	41.5	4531
3x150	sm	1.4	2.3	70	46.5	5459
3x185	sm	1.6	2.5	95	51.0	6820
3x240	sm	1.7	2.6	120	57.5	8834
3x300	sm	1.8	2.8	150	62.5	10899
4x1.5	re/rm	0.7	1.8	1.5	14.3	250
4x2.5	re/rm	0.7	1.8	2.5	15.4	315
4x4	re/rm	0.7	1.8	4	16.8	406
4x6	re/rm	0.7	1.8	6	18.1	523
4x10	rm	0.7	1.8	10	20.5	772
4x16	rm	0.7	1.8	16	23.5	1100
4x25	rm	0.9	1.8	16	27.5	1541
4x35	rm	0.9	1.9	16	30.0	1976
4x50	sm	1	2	25	33.5	2428
4x70	sm	1.1	2.1	35	38.5	3418
4x95	sm	1.1	2.2	50	42.5	4583
4x120	sm	1.2	2.4	70	48.0	5807
4x150	sm	1.4	2.5	70	54.0	6992
4x185	sm	1.6	2.7	95	58.5	8704
4x240	sm	1.7	2.8	120	65.5	11283
4x300	sm	1.8	3	150	71.5	13920
5x1.5	re/rm	0.7	1.8	1.5	15.2	291
5x2.5	re/rm	0.7	1.8	2.5	16.4	365
5x4	re/rm	0.7	1.8	4	17.9	476
5x6	re/rm	0.7	1.8	6	19.5	617
5x10	rm	0.7	1.8	10	22.5	909
5x16	rm	0.7	1.8	16	25.5	1300
5x25	rm	0.9	1.8	16	29.5	1844
5x35	rm	0.9	1.9	16	32.5	2390
5x50	rm	1.1	2.2	25	37.0	3120

Designed For Protected Power Transmission And Structured Distribution
The N2XCY cable is developed for technicians and engineers working on internal wiring systems in substations, industrial infrastructure, and panel assemblies. Its construction is suitable for fixed installation in dry areas such as control cabinets, protected cable ducts, and enclosed electrical rooms. Electrical contractors favor this design for its concentric conductor arrangement and mechanical protection in confined routes. With its stable layout, it supports long-term deployment in wire and cable distribution frameworks where consistent electrical insulation and compact form factor are essential.

Engineered With XLPE Insulation And Concentric Conductor Screen
This cable consists of a solid or stranded bare copper wire conductor built to VDE and IEC Class 1/2 standards. It features XLPE insulation with a PVC filler and a concentric copper layer for shielding and grounding. The outer sheath is made from flame-retardant PVC. Rated for 600/1000 V and tested to 4000 V, it supports operational temperatures from –30 °C to +70 °C, with short-circuit resistance up to +250 °C. Its mechanical properties and electrical stability meet high expectations for controlled wiring in cable manufacturing and regulated installations.

Applied Across Power Cabinets, Switch Rooms, And Indoor Grids
Engineers use the N2XCY cable in low-voltage switchboards, transformer rooms, local distribution units, and underground conduits that do not involve moisture or UV exposure. The concentric copper conductor is often connected as a functional earth or fault conductor, offering improved fault clearance and safety. Thanks to these attributes, this cable is relied upon by installers, maintenance teams, and wire manufacturers seeking compliance and continuity in power infrastructure builds.

Product Advantages

Integrated Ground Function Through Concentric Design
Unlike standard single-core cables, N2XCY includes a concentric copper conductor layer that can act as a grounded neutral or protective conductor. This integration eliminates the need for separate grounding wires in specific setups, simplifying installation. It also reinforces the cable’s resistance to mechanical damage, making it more reliable in dense wiring channels. This is especially useful for wire manufacturers and technicians working on distributed enclosures and panels.

Durable Insulation System With Flame-Retardant Outer Layer
The XLPE insulation provides thermal resistance under continuous load, while the PVC sheath protects against abrasion and internal panel contact. Flame performance meets IEC standards, reducing ignition risk during short circuits or overloads. This structure ensures the cable can be used in high-density cabinet systems or structured routing environments where safety and temperature resilience are priorities for industrial cable suppliers.

Color Identification Supports Fast And Accurate Installation
Each core is marked according to VDE color coding systems, which simplifies conductor recognition during connection, testing, and maintenance. The flexibility of stranded conductors combined with stable insulation makes installation easier across both new projects and retrofits. This layout clarity and standardization enhance workflow efficiency for professionals in cable manufacturing and equipment integration roles.

Use Scenarios

Substation Installers Managing Low-Voltage Networks
In power stations and transformer facilities, engineers require cables that can serve both as phase conductors and integrated earth or shield lines. N2XCY fulfills this dual-purpose requirement, offering strong insulation and reliable fault current paths. Its mechanical endurance makes it well-suited for use in underground trays and protected control circuits, matching the expectations of experienced industrial cable suppliers involved in infrastructure development.

Electrical OEMs Designing Internal System Circuits
For OEMs developing enclosed electrical assemblies, N2XCY supports secure transmission across relays, circuit breakers, and busbars. The conductor’s flexibility, coupled with thermal endurance, enables precise internal wiring without excess stress or overheating. This reliability streamlines assembly lines and long-term service for wire manufacturers working with distribution control components and integrated systems.

Maintenance Engineers Upgrading Cabinet Infrastructure
When upgrading or expanding low-voltage panels, technicians need cables that are easy to strip, terminate, and route through dense enclosures. N2XCY enables straightforward handling, clear conductor marking, and high resilience against operational loads. Its concentric conductor also ensures that safety grounding is retained without needing additional wiring—a key advantage for specialists sourcing from trusted wire and cable distributors.

About Us

JINDA CABLE is a professional manufacturer focused on the research, development, and production of industrial electrical cables. With decades of experience, the company operates multiple large-scale manufacturing facilities in China, covering over 470,000 square meters. JINDA serves a wide customer base across sectors such as power generation, urban infrastructure, petrochemicals, and equipment manufacturing. Its portfolio includes XLPE-insulated power cables, PVC wires, control cables, and specialized products designed to meet domestic and international compliance standards. JINDA’s reputation among global wire and cable clients is built on technical rigor, material quality, and a long-standing commitment to reliability. The company provides OEM customization services, a 10-year quality guarantee, and operates with a philosophy centered on integrity, precision, and user satisfaction. Its products have been applied in airports, metro lines, large-scale construction projects, and exported to more than 50 countries.

Request A Quote For N2XCY Power Cable Installations Now!

FAQ

What voltage does the N2XCY cable support?
It is rated for 600/1000 V working voltage and has been tested up to 4000 V.

Can the concentric conductor be used as protective earth?
Yes, it can serve as a functional earth, neutral, or shielding conductor depending on system design.

Does the product meet international cable standards?
Yes, it complies with VDE 0276, IEC 60502-1, and insulation/fire safety standards including IEC 60332-1.

What thermal range can the cable operate within?
It operates between –30 °C and +70 °C, with short-circuit thermal tolerance up to +250 °C.

Is this cable suitable for outdoor installations?
No, the N2XCY cable is designed for dry indoor environments and protected routing systems.
