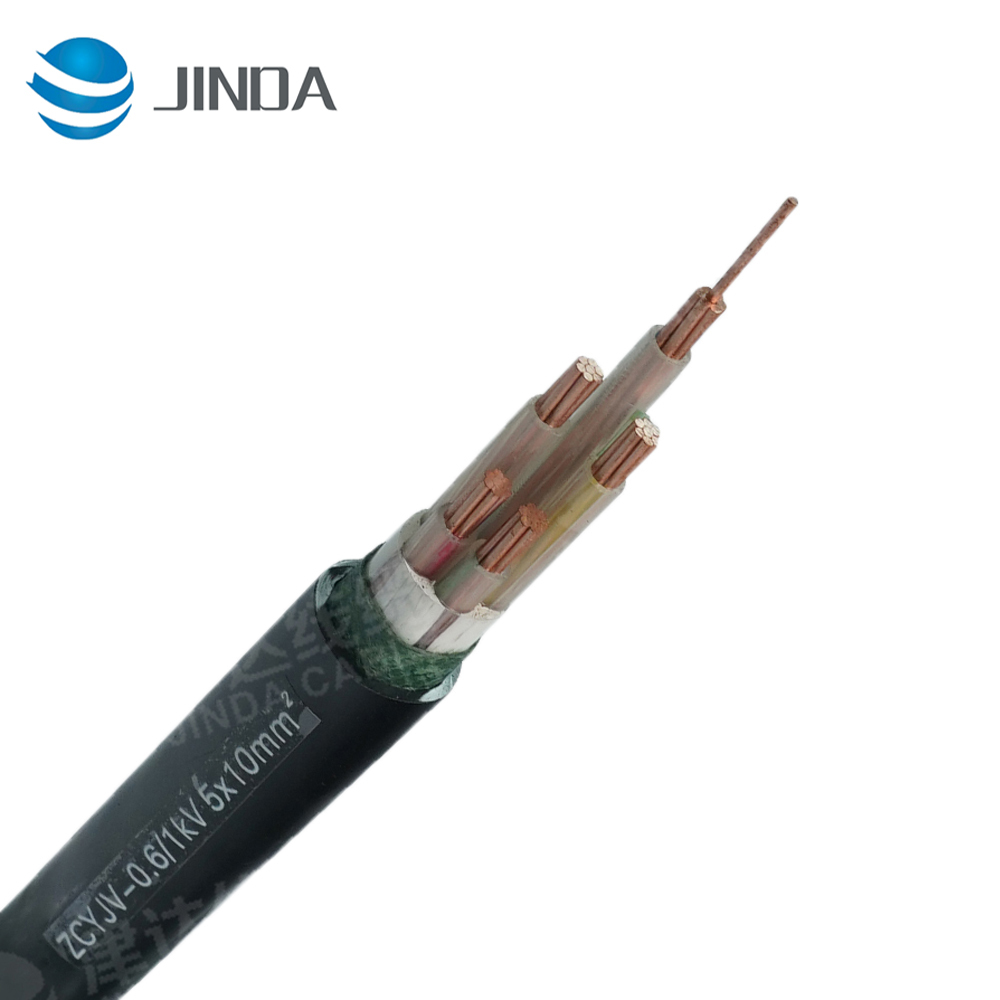

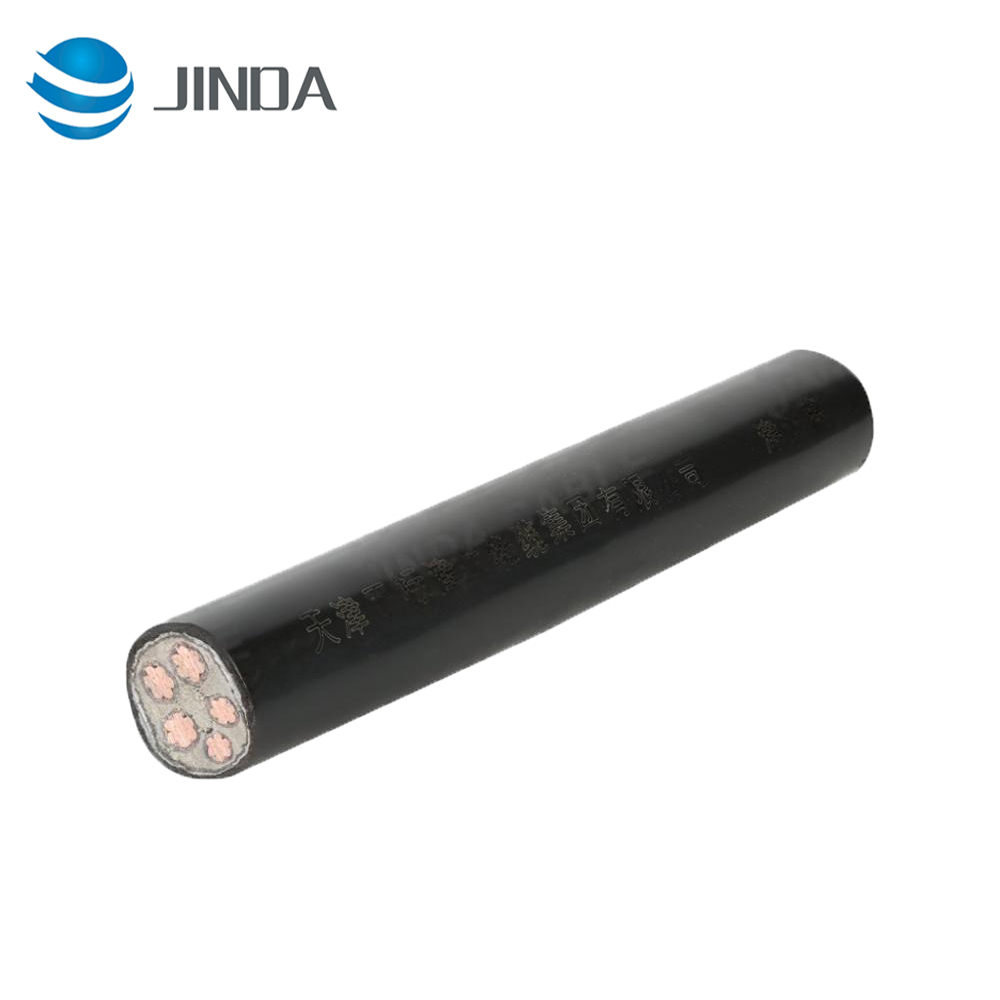

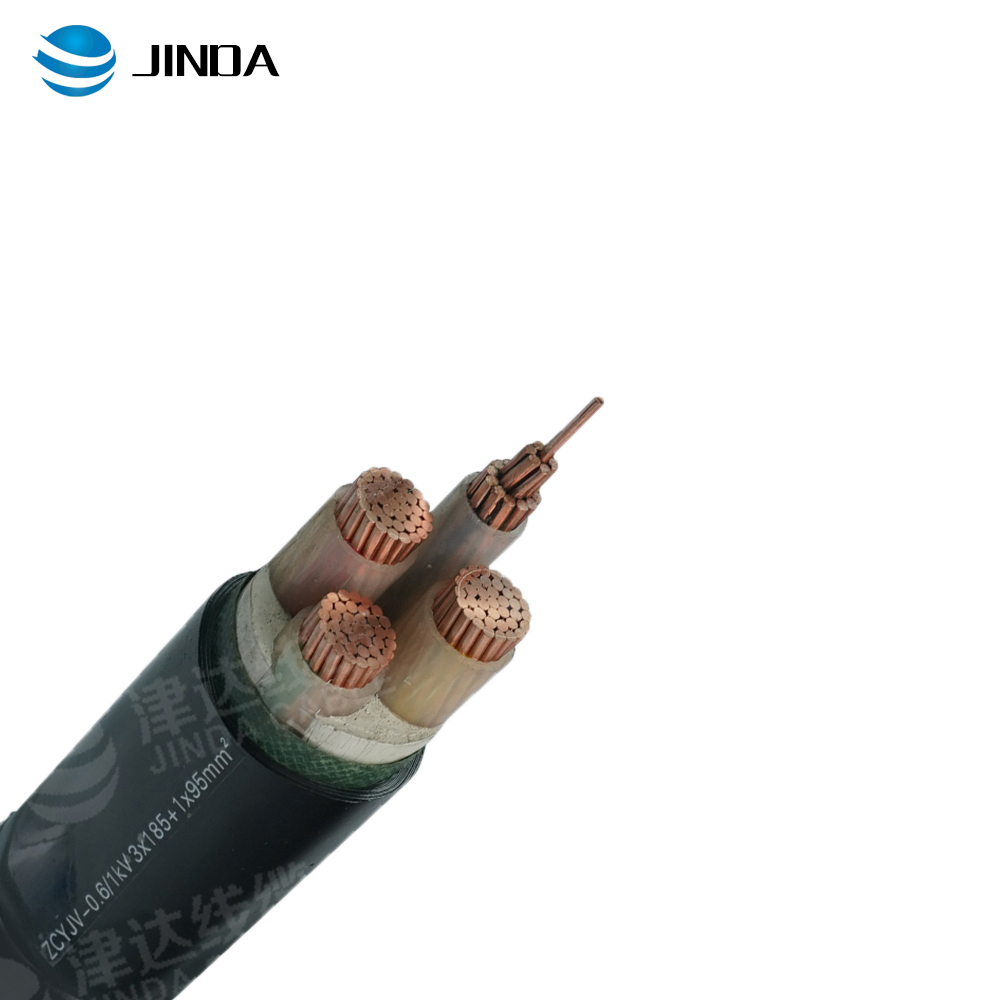

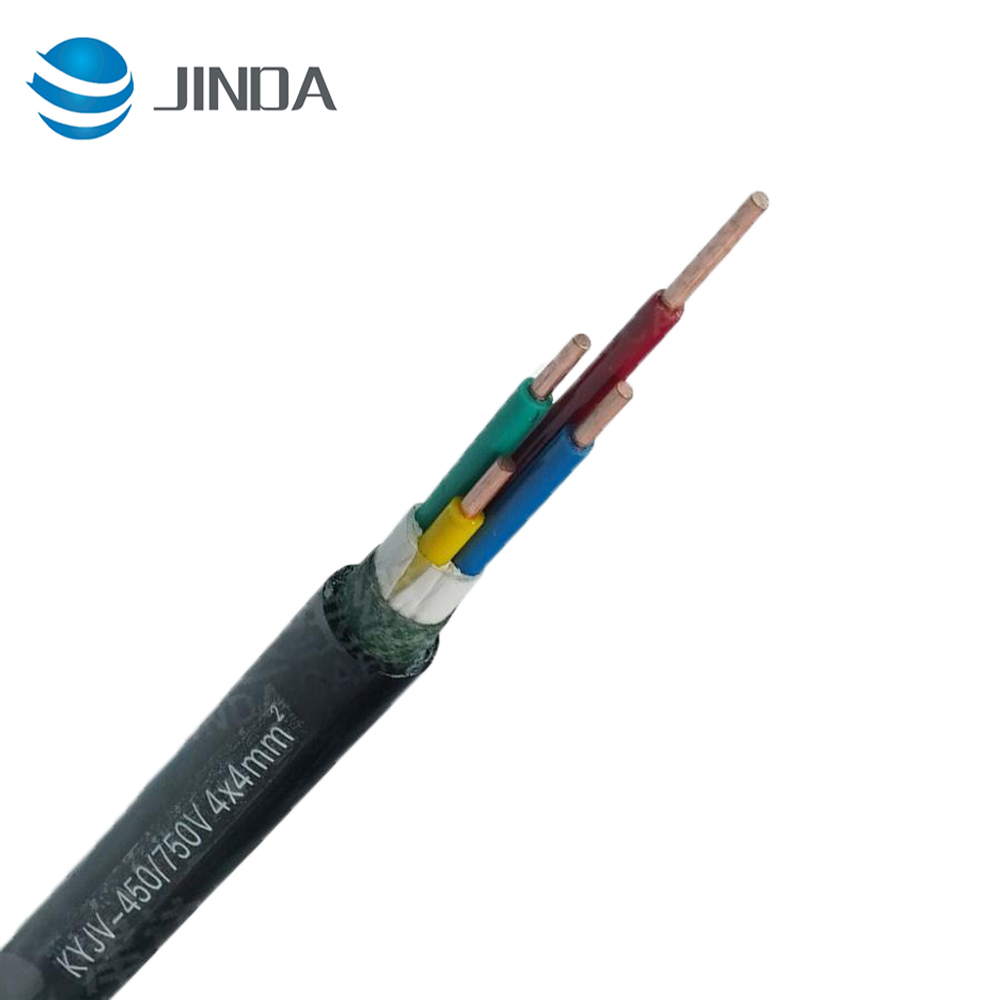

Name: JINDA NYCY Low Voltage Cable - Underground Applications
Brand: JINDA | Cable
Availability: InStock
Rating: 5 (1 reviews)

Description

Application and description

NYCY cables are used in power generation industries and switchgear, street lights, household power
connections, secondary distribution networks and others. These cables are suitable for underground
applications, indoor installation and cable piping and outdoor applications, open installation, and can
also be laid underground and in water with mechanical protection.

Standards and certification

VDE0276-603, CENELEC HD603 S1, IEC 60502 7-core and above comply with VDE0267-627, CENELEC
HD627 S1, IEC 60502

Cable structure

- Solid bare copper conductor

- Comply with DIN VDE 0295 cl.1, IEC 60228 cl.1

- PVC insulated DIV4 class, following HD 603.1

- Color coding follows DIN VDE 0293-308, 0276-603 /HD 186

- PVC filling and lining

- Concentric conductor: copper wire and spiral copper tape

- PVC outer sheath DMV5, following HD 603.1

Technical characteristics

- Operating voltage: 600/1000 V

- Test voltage: 4000 V

- Dynamic bending radius: 15 x Ø

- Static bending radius: 12 x Ø

- Operating temperature: -5º C ~ +50º C

- Flame retardant: IEC 60332.1

- Insulation resistance: >100 MΩ x km

Cable parameter

Core number x conductor Cross area # x mm²	Conductor type	Nominal outside diameter mm	Copper weight kg/km	Cable weightkg/km
1 x 10.0	re/10	11	216	280
1 x 16.0	re/16	12	336	440
2 x 1.5	re/1.5	13	52	205
2 x 2.5	re/2.5	13.5	80	270
2 x 4.0	re/4	15.5	123	360
2 x 6.0	re/6	17	182	435
2 x 10.0	re/10	19.5	312	590
2 x 16.0	re/16	20.5	489	820
3 x 1.5	re/1.5	13.5	66	225
3 x 2.5	re/2.5	14.5	104	290
3 x 4.0	re/4	16.5	161	400
3 x 6.0	re/6	17.5	240	510
3 x 10.0	re/10	20	408	850
3 x 16.0	re/16	23	643	1080
4 x 1.5	re/1.5	14.5	81	260
4 x 2.5	re/2.5	15.5	128	350
4 x 4.0	re/4	17	200	470
4 x 6.0	re/6	18.5	297	590
4 x 10.0	re/10	21	504	900
4 x 16.0	re/16	23	796	1250
5 x 1.5	re/1.5	15	95	330
5 x 2.5	re/2.5	16	152	400
5 x 4.0	re/4	19	238	560
5 x 6.0	re/6	21	355	710
5 x 10.0	re/10	23	600	1000
7 x 1.5	re/1.5	15	124	320
7 x 1.5	re/2.5	16	133	350
7 x 2.5	re/2.5	17.5	200	450
7 x 4.0	re/4	21	315		670
7 x 6.0	re/6	24	470		790
8 x 1.5	re/1.5	17	138	380
8 x 1.5	re/2.5	17	147	400
8 x 2.5	re/2.5	18	224	510
10 x 1.5	re/2.5	19	176	440
10 x 2.5	re/4	20.5	286	600
12 x 1.5	re/2.5	20	205	500
12 x 2.5	re/4	21	334	660
14 x 1.5	re/2.5	20.5	234	540
14 x 2.5	re/4	22	382	760
14 x 2.5	re/6	22.5	403	800
16 x 1.5	re/4	22	276	600
16 x 2.5	re/6	23	451	910
19 x 1.5	re/4	23	320	690
19 x 2.5	re/6	23.5	523	950
21 x 1.5	re/6	24	369	810
21 x 2.5	re/6	26	571	1100
24 x 1.5	re/6	26	413	860
24 x 2.5	re/10	28	696	1300
30 x 1.5	re/6	27	499	1230
30 x 2.5	re/10	30	840	1610
40 x 1.5	re/10	30	696	1590
40 x 2.5	re/10	35	1080	2100
52 x 1.5	re/10	32	869	1820
52 x 2.5	re/10	38	1368	2500
61 x 1.5	re/10	33	998	2000
61 x 2.5	re/10	40	1584	2850

Unmatched Versatility for Diverse Applications
The JINDA NYCY Low Voltage Cable is engineered to meet the demanding needs of power generation industries, switchgear, and street lighting. As a leading low voltage cable manufacturer, JINDA ensures that these cables are perfect for underground installations, providing robust mechanical protection. Whether you're looking for a reliable low voltage supply for household power connections or secondary distribution networks, the NYCY cables are your go-to solution. Certified with TUV and CE standards, these cables guarantee safety and reliability, making them an essential component in any electrical setup. With their ability to be laid underground and in water, these low voltage cables are versatile enough to handle various environmental conditions, ensuring consistent performance across applications.

Built for Precision and Performance
JINDA's NYCY cables are crafted with precision to deliver exceptional performance. Featuring a solid bare copper conductor, these low voltage wires comply with DIN VDE 0295 cl.1 and IEC 60228 cl.1 standards, ensuring top-notch conductivity and durability. The PVC insulated DIV4 class, along with a PVC outer sheath, provides excellent insulation and protection, making these lv cables flame retardant as per IEC 60332.1 standards. With an operating voltage of 600/1000 V and a test voltage of 4000 V, these cables are designed to withstand rigorous electrical demands. The dynamic and static bending radii of 15 x Ø and 12 x Ø, respectively, ensure flexibility and ease of installation, making them ideal for both indoor and outdoor applications. As a trusted low voltage cable manufacturer, JINDA delivers cables that are not only reliable but also built to last.

Scalable Design to Meet Growing Demand
Designed with scalability in mind, the NYCY cables cater to the evolving needs of modern infrastructure. Whether you're expanding a power generation facility or upgrading street lighting systems, these low voltage cables offer the adaptability required for future-proofing your projects. The comprehensive range of cable parameters, from core numbers to conductor cross areas, allows for customization to meet specific requirements. Additionally, the waterproof low voltage cable connector ensures secure and efficient connections, even in challenging environments. As a leader in low voltage supply, JINDA provides cables that are not only versatile but also scalable, making them the perfect choice for projects of any size. Trust in JINDA's expertise as a low voltage cable manufacturer to deliver solutions that align with your long-term goals and operational efficiency.

Product Advantages

1. Exceptional Reliability and Safety
The JINDA NYCY Low Voltage Cable is certified with TUV and CE standards, ensuring unmatched reliability and safety for all installations. As a leading low voltage cable manufacturer, JINDA guarantees that these cables meet rigorous industry standards, providing peace of mind for power generation industries, switchgear, and street lighting applications. With robust mechanical protection, these low voltage cables are ideal for underground installations, safeguarding your infrastructure against potential hazards.

2. Versatile Applications Across Environments
Engineered for diverse applications, the JINDA NYCY Low Voltage Cable excels in both indoor and outdoor settings. Whether laid underground or in water, these lv cables offer consistent performance, adapting to various environmental conditions. As a trusted low voltage cable manufacturer, JINDA ensures that these cables are versatile enough to handle household power connections and secondary distribution networks, making them a reliable choice for any electrical setup.

3. Precision Craftsmanship for Optimal Performance
Featuring a solid bare copper conductor, the JINDA NYCY Low Voltage Wire complies with DIN VDE 0295 cl.1 and IEC 60228 cl.1 standards, delivering top-notch conductivity and durability. The PVC insulated DIV4 class and PVC outer sheath provide excellent insulation and protection, making these low voltage cables flame retardant as per IEC 60332.1 standards. With an operating voltage of 600/1000 V and a test voltage of 4000 V, these cables are designed to withstand demanding electrical requirements.

4. Scalable Solutions for Growing Infrastructure
Designed with scalability in mind, the JINDA NYCY Low Voltage Cable caters to the evolving needs of modern infrastructure. Whether expanding a power generation facility or upgrading street lighting systems, these low voltage cables offer the adaptability required for future-proofing projects. The comprehensive range of cable parameters allows for customization to meet specific requirements, ensuring efficient connections with the waterproof low voltage cable connector.

5. Ease of Installation and Flexibility
The dynamic and static bending radii of 15 x Ø and 12 x Ø, respectively, ensure flexibility and ease of installation for the JINDA NYCY Low Voltage Cable. As a leading low voltage cable manufacturer, JINDA provides cables that are not only reliable but also easy to install, making them ideal for both indoor and outdoor applications. Trust in JINDA's expertise to deliver solutions that align with your long-term goals and operational efficiency.
